A RENAISSANCE OF SOUND

The Palladio Collection is a visual and auditory tribute to Andrea Palladio, one of the most renowned architects of the Italian Renaissance.

Many of his masterpieces still stand in the Italian town of Vicenza, where Sonus faber is based. The Palladio collection fuses history, art, tradition, and elegant artisanship with cutting-edge audio technology.

BEYOND THE BOUNDARIES

Created in response to the scarcity of premium craftsmanship in contemporary custom installation speakers, the Palladio Collection extends Sonus faber's sonic signature into diverse environments, transcending the confines of conventional listening spaces.

ELEGANCE AND VERSATILITY

The 13 different models of the Palladio Collection are designed to meet a range of listening needs in home theater and multi-room configurations. The Collection’s versatility in both design and sound configuration offers an ideal solution for an array of listening spaces.

Sound Pointing
Whenever front speakers cannot be placed on walls, this model is made to be mounted in the ceiling. By positioning drivers to be angled to the surface, the sound emission aims to the direction of the listening position.

Quick Installation
Thanks to the swing out dogs fixing system, all Palladio speakers can be secured quickly and effectively to plasterboard.

Tweeter
DAD (Damped Apex Dome) silk dome tweeter.

Mid-Woofer
The custom diaphragm is made in natural fiber and cellulose pulp, according to the most natural sound.

Paracross Topology
The anti-resonant design of the x-over network features the Paracross Topology circuitry, to guarantee a better definition and purity of sound.

Price is for a single speaker and includes shipping to most areas of Canada

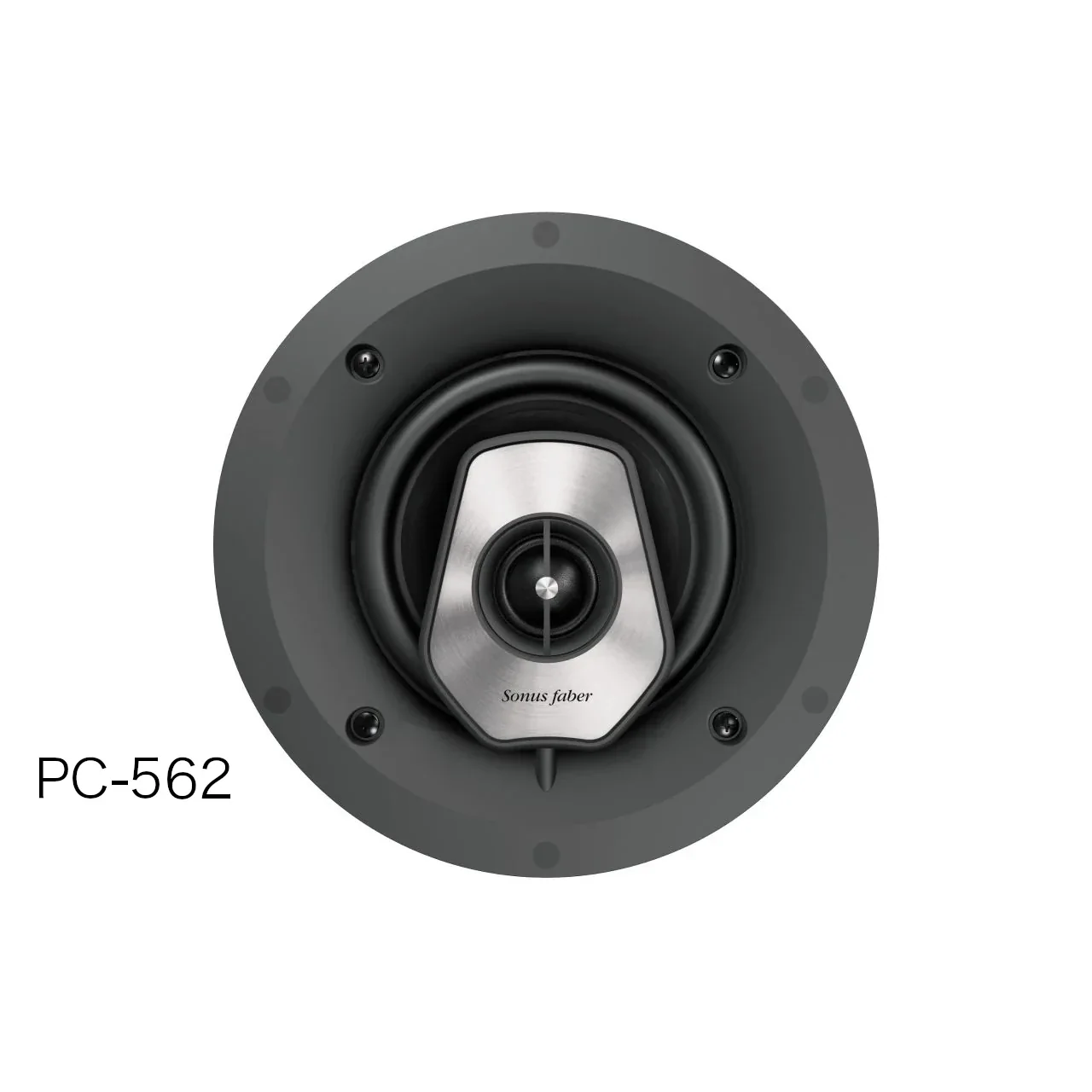

Model	PC 562	PC-562P	PC-563P	PC-582
System	Two-way In-Ceiling System, Infinite Baffle	Two-way Point In-Ceiling System, Infinite Baffle	Two-way Point In-Ceiling System, Infinite Baffle	Two-way In-Ceiling System, Infinite Baffle
Drivers	1.1" (29mm) Tweeter DAD Driver 6.5" (165mm) Midwoofer	1.1" (29mm) Tweeter DAD Driver 6.5" (165mm) Midwoofer	1.1" (29mm) Tweeter DAD Driver 2x 6.5" (165mm) Midwoofer	1.1" (29mm) Tweeter DAD Driver 8" (200mm) Midwoofer
Crossover (Paracross Technology)	3000Hz	3000Hz	1650Hz	3000Hz
Frequency Response	50Hz-25kHz	50Hz-25kHz	45Hz-25kHz	45Hz-25kHz
Sensitivity (2.83 Vrms @ 1m)	90dB	90dB	92dB	90dB
Nominal Impedance	4 Ohms	4 Ohms	4 Ohms	4 Ohns
Coverage Angle (1kHz, @ -6dB)	+/- 60 Degree Horizontal +/- 60 Degree Vertical	+/- 60 Degree Horizontal +/- 60 Degree Vertical	+/- 45 Degree Horizontal +/- 45 Degree Vertical	+/- 60 Degree Horizontal +/- 60 Degree Vertical
Suggest Amplifier	40-200W Without Clipping	40-200W Without Clipping	40-250W Without Clipping	40-200W Without Clipping
Frame Outer	9.2" (234mm)	10.4" (265.2mm)	18.1" x 15.1" (460mm x 386mm)	11.1" (283mm)
Cut Out	8.19" (208mm)	9.6" (244mm)	17" x 14.1" (433mm x 359mm)	10.1" (257mm)
Depth Behind Surface	4.52" (115mm)	6.7" (170mm)	5.82" (148mm)	5.5" (139mm)
Protrusion	0.40" (10mm)	0.40" (10mm)	0.51" (13mm)	0.51" (13mm)
Net Weight	6.8lbs (3.1kg)	7lbs (3.2kg)	14.3lbs (6.5kg)	7.5lbs (3.4kg)
Included	Bezel-Free Round Magnetic Grille	Bezel-Free Round Magnetic Grille	Bezel-Free Square Magnetic Grille	Bezel-Free Round Magnetic Grille
Additional Fittings	Pre-Mount Kit Bezel-Free Square Magnetic Grille	Pre-Mount Kit Bezel-Free Square Magnetic Grille	None	Pre-Mount Kit Bezel-Free Square Magnetic Grille
