MartinLogan Abyss 8 Subwoofer

Abyss 8 is one of the smallest, most compact subwoofers that MartinLogan has ever built, but don’t let its small footprint fool you, it is capable of bass completely unexpected from its ultra-compact size. The key to its deceptively strong, yet detailed sound is its Hybrid Woofer System which utilizes a pair of 8” passive radiators to bolster its active 8” woofer. This woofer system is driven by powerful amplification, and a precision DSP engine, all contained inside a beautiful, yet robust, 1” thick cabinet. To complement the impressive power and musicality of Abyss 8, MartinLogan engineers included an array of connectivity options ranging from XLR to the built-in wireless option. Abyss 8 also features MartinLogan’s powerful and intuitive control app for convenient setup and adjustment, as well as being compatible with the award-winning Anthem Room Correction (ARC®) system.

Digital Signal Processor	Ultra High-Resolution 500MHz Vojtko DSP Engine with 64bit processing
Frequency Response	23–120 Hz ±3 dB (Anechoic via LFE input)

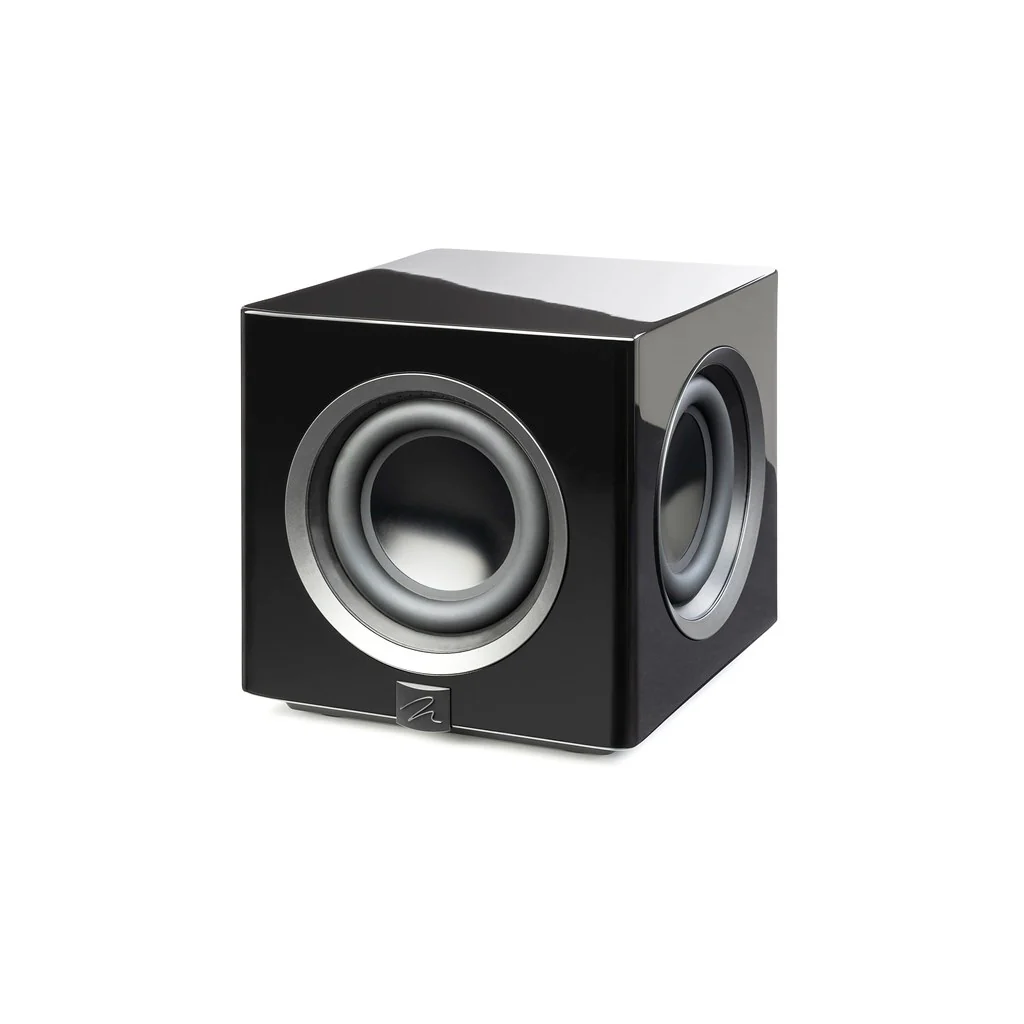

Low Frequency Transducer	Triple 8" (20.3cm) Hybrid Woofer System consisting of a single high-excursion, anodized-aluminum cone in a stamped steel basket with dual anodized-aluminum cone passive radiators
Cabinet	Precision-crafted, sealed MDF enclosure featuring a robust 1-inch thick MDF woofer baffle
Amplifier	Magnitude MT-1kW Amplifier with 1,000W peak (500W continuous)

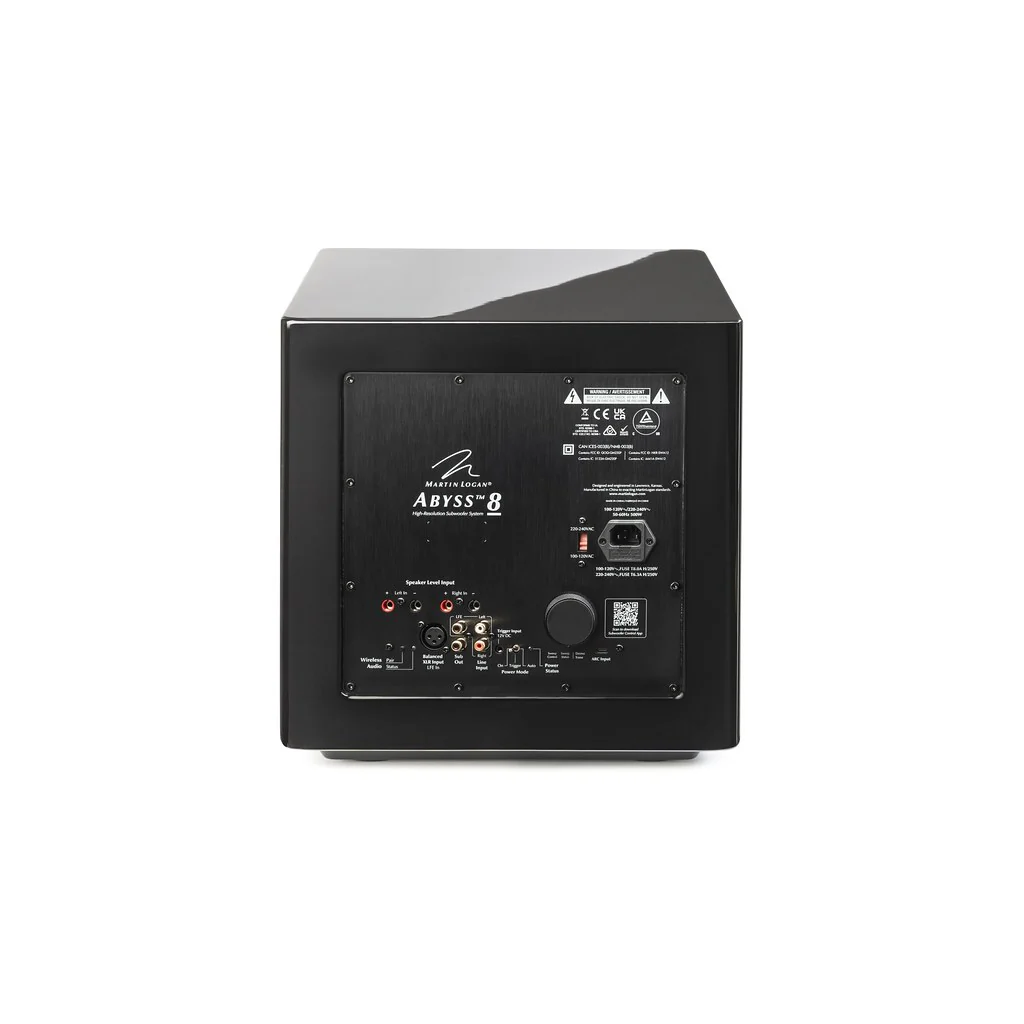

Controls (Backplate)	Level: Interactive LED Backlit Knob Tone Sweep: Sweep Start and Pause (with status light) Power Mode: On, 12v Trigger, Auto Wireless Audio Pairing Button (for included MartinLogan wireless transmitter)
Inputs	Line Level: Left, Right/LFE, XLR LFE Speaker Level: Left and Right (Requires Banana Plugs)
Weight	46.7 lbs (21.2 kg)
Dimensions (HxWxD)	13.5" x 13.2" x 13.2" (34.3cm x 33.5cm x 33.5cm)
