Monitor Audio Flush Fit Products

CF230 Flush Fit In-Ceiling Speaker (Each)

Special Order - Includes Standard Domestic Shipping

The CF230 is Monitor Audio’s most visually discreet speaker system, providing an abundance of design possibilities for integrators, architects and installers. Its ingeniously designed retrofit and pre-construction make it a dream to install, while its C-CAM-based driver array delivers the superb audio this British maker is famed for.

Flush Fit / Retrofit Brackets are REQUIRED for installation

Model	CF230
Sensitivity (1W @ 1m)	82.5dB
Cut Out Diameter	Flush Fit - 4 3/4" (120mm) Retrofit - 3 9/16" (90mm)
Overall Depth (With Grille)	3 5/16" (83.62mm)
Power Handling (RMS)	30W - Full Range (IEC268-5 rating) 100W - Music program (Using High Pass crossover filter at 120Hz
Impedence	8 Ohms
Driver Size and Technology	3 1/2" Bass/mid-range driver featuring C-CAM cone 3/4" C-CAM Gold Dome Tweeter (Coincident)
Sold As	Each

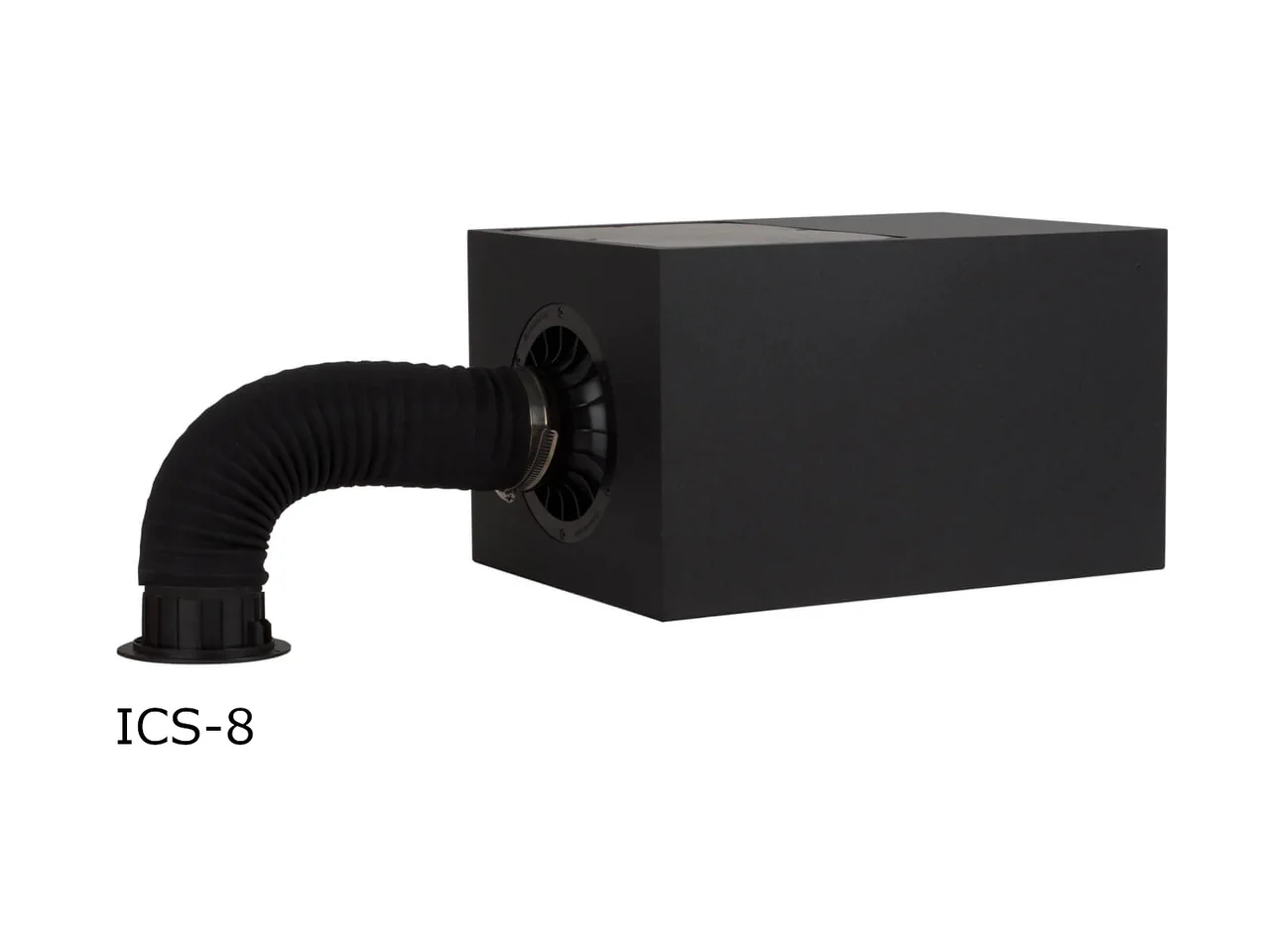

ICS-8 Flush Fit In-Ceiling Subwoofer (Each)

The Monitor Audio ICS-8 subwoofer enables system-enhancing bass from the most visually discreet of settings. Developed primarily to complement the Monitor Audio CF230 speaker system, the ICS-8 fits into ceiling and wall cavities and under floors, enhancing the CF230 driver array and providing punchy bass from 40 Hz to 120 Hz.

Flush Fit / Retrofit Brackets are REQUIRED for installation

Model	ICS-8
Subwoofer Type	In-Ceiling
Sensitivity (1W @ 1m)	85dB
Overall Cabinet Dimensions (H x W x D)	9 1/4" x 11" x 15 9/16" (235mm x 280mm x 396mm)
Power Handling (RMS)	150W - Full Range - IEC268-5 rating
Impedance	8 Ohms (Nominal)
Input Impedance	NA
Driver Size and Technology	8" Long Throw Bass Driver featuring C-CAM Cone Technology
