Rotel RA-1572MkII Integrated Amplifier
HomeStore

Rotel RA-1572MkII Integrated Amplifier

Rotel RA-1572MkII Integrated Amplifier

On Demo Now!

Click Here to Book an In-Store Demo!

The RA-1572MKII Integrated Amplifier brings your music to life with exceptional fidelity delivering 120 Watts of Class AB output into 8 ohms with deep, controlled bass energy. The audiophile grade DAC, analog, digital, aptXTM and AAC Bluetooth, PC-USB supporting MQA and Moving Magnet Phono stage ensure exceptional detail and immersive soundstage.

Continuous Power Output - 8 Ohms
 120 W/Ch
Maximum Power Output - 4 Ohms 200 W/Ch
Speaker A/B Yes
Amplifier Class AB / Custom Designed Toroidal Transformer
Total Harmonic Distortion < 0.018%
Analog Inputs
  • 1x XLR (Balanced)
  • 3x RCA (Unbalanced)
  • 1x RCA Phono (Unbalanced, MM)
Digital Inputs
  • 2x Optical
  • 2x Coaxial
  • Bluetooth with AptX
  • PC-USB
  • Front USB (iOS Devices Only)
Outputs
  • 1x RCA (Unbalanced)
  • 2x RCA (Mono Sub Out)
  • 1x 3.5mm Headphone Jack (Front)
DAC (Digital to Analog Converter) Texas Instruments 32-bit / 384kHz
Frequency Response - Phono Input 20-20kHz (0 +/- 0.5dB)
Frequency Response - Line Level Inputs
 10-100kHz (0 +/- 0.5dB)
Frequency Response - Digital Inputs 10-90kHz (0 +/- 2dB, Max)
Damping Factor 300 (20-20kHz 8 Ohms)
Input Sensitivity / Impedance - Phono Input MM
 2.1mV / 47k Ohms
Input Sensitivity / Impedance - Line Level Inputs RCA
 270mV / 100k Ohms
Input Sensitivity / Impedance - Line Level Inputs XLR 440mV / 100k Ohms
Input Sensitivity / Impedance - Digital Inputs
 0dBfs / 75 Ohms
Preamp Output / Impedance 1.5V / 470 Ohms
Signal to Noise Ratio - Phono Input (MM) 80dB
Signal to Noise Ratio - Line Level Imputs 100dB
Signal to Noise Ratio - Digital Inputs
 100dB
Available Sample Rates - Coaxial / Optical 24-bit / 192kHz
Available Sample Rates - PC-USB
  • USB Class 1.0 (up to 24-bit 96kHz)
  • USB Class 2.0 (up to 32-bit 384kHz) - Driver Installation Required
  • MQA and MQA Studio (up to 24-bit 384kHz)
  • Roon Tested
Power Consumption - Normal < 0.5 Watts
Power Consumption - Network Wakeup < 2 Watts
Dimensions (WxHxD) 17" x 5 5/8" x 14 1/8" (431mm x 144mm x 358mm)
Panel Height 3U, 5 1/4" (132.6mm)
Weight 30.05lbs (13.63kg)


Read a review from HomeTheaterHifi.com

Read a review at SoundStage magazine


    Select Color
    From $665.33

    Original: $1,900.94

    -65%
    Rotel RA-1572MkII Integrated Amplifier—

    $1,900.94

    $665.33

    More Images

    Rotel RA-1572MkII Integrated Amplifier - Image 2

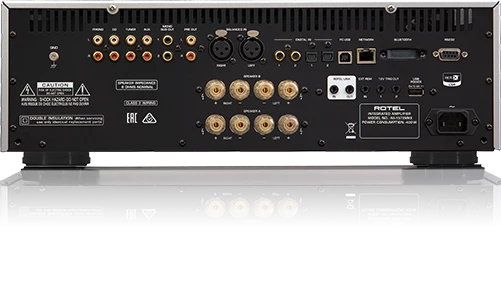

    Rotel RA-1572MkII Integrated Amplifier - Image 3

    Rotel RA-1572MkII Integrated Amplifier

    On Demo Now!

    Click Here to Book an In-Store Demo!

    The RA-1572MKII Integrated Amplifier brings your music to life with exceptional fidelity delivering 120 Watts of Class AB output into 8 ohms with deep, controlled bass energy. The audiophile grade DAC, analog, digital, aptXTM and AAC Bluetooth, PC-USB supporting MQA and Moving Magnet Phono stage ensure exceptional detail and immersive soundstage.

    Continuous Power Output - 8 Ohms
    		 120 W/Ch
    Maximum Power Output - 4 Ohms 200 W/Ch
    Speaker A/B Yes
    Amplifier Class AB / Custom Designed Toroidal Transformer
    Total Harmonic Distortion < 0.018%
    Analog Inputs
    • 1x XLR (Balanced)
    • 3x RCA (Unbalanced)
    • 1x RCA Phono (Unbalanced, MM)
    Digital Inputs
    • 2x Optical
    • 2x Coaxial
    • Bluetooth with AptX
    • PC-USB
    • Front USB (iOS Devices Only)
    Outputs
    • 1x RCA (Unbalanced)
    • 2x RCA (Mono Sub Out)
    • 1x 3.5mm Headphone Jack (Front)
    DAC (Digital to Analog Converter) Texas Instruments 32-bit / 384kHz
    Frequency Response - Phono Input 20-20kHz (0 +/- 0.5dB)
    Frequency Response - Line Level Inputs
    		 10-100kHz (0 +/- 0.5dB)
    Frequency Response - Digital Inputs 10-90kHz (0 +/- 2dB, Max)
    Damping Factor 300 (20-20kHz 8 Ohms)
    Input Sensitivity / Impedance - Phono Input MM
    		 2.1mV / 47k Ohms
    Input Sensitivity / Impedance - Line Level Inputs RCA
    		 270mV / 100k Ohms
    Input Sensitivity / Impedance - Line Level Inputs XLR 440mV / 100k Ohms
    Input Sensitivity / Impedance - Digital Inputs
    		 0dBfs / 75 Ohms
    Preamp Output / Impedance 1.5V / 470 Ohms
    Signal to Noise Ratio - Phono Input (MM) 80dB
    Signal to Noise Ratio - Line Level Imputs 100dB
    Signal to Noise Ratio - Digital Inputs
    		 100dB
    Available Sample Rates - Coaxial / Optical 24-bit / 192kHz
    Available Sample Rates - PC-USB
    • USB Class 1.0 (up to 24-bit 96kHz)
    • USB Class 2.0 (up to 32-bit 384kHz) - Driver Installation Required
    • MQA and MQA Studio (up to 24-bit 384kHz)
    • Roon Tested
    Power Consumption - Normal < 0.5 Watts
    Power Consumption - Network Wakeup < 2 Watts
    Dimensions (WxHxD) 17" x 5 5/8" x 14 1/8" (431mm x 144mm x 358mm)
    Panel Height 3U, 5 1/4" (132.6mm)
    Weight 30.05lbs (13.63kg)


    Read a review from HomeTheaterHifi.com

    Read a review at SoundStage magazine
