MartinLogan Installer Series In-Wall Speakers (Single)
The Installer Series™ by MartinLogan is a line of affordable high-performance products, featuring custom installation solutions for in-wall, in-ceiling, and outdoor applications. Manufactured to the highest standards of quality, these products are available through authorized specialty custom installation specialists and carry the full MartinLogan warranty.
IW6
The perfect in-wall speaker. The MartinLogan IW6 features all of the technologies, aesthetics and user-friendly installation attributes of the Installer Series all in a size that delivers trademark MartinLogan performance.

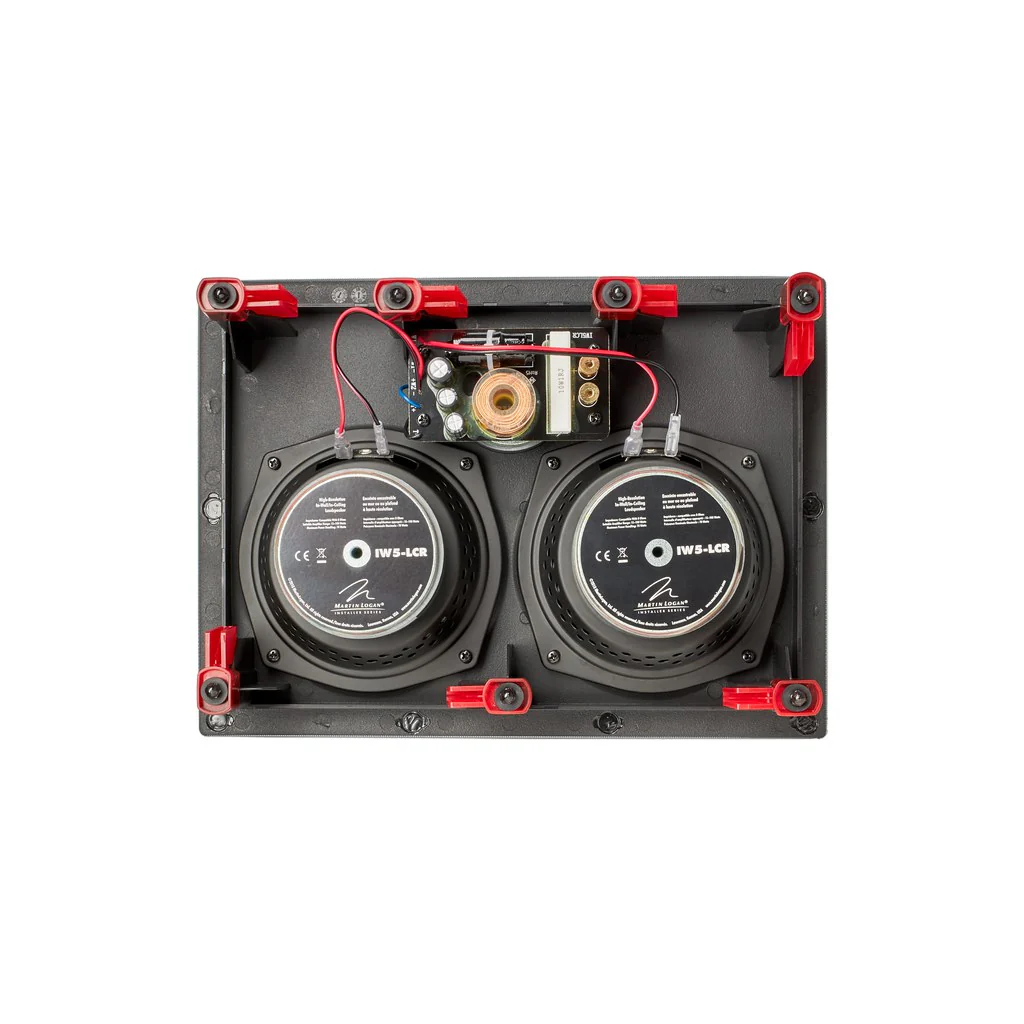

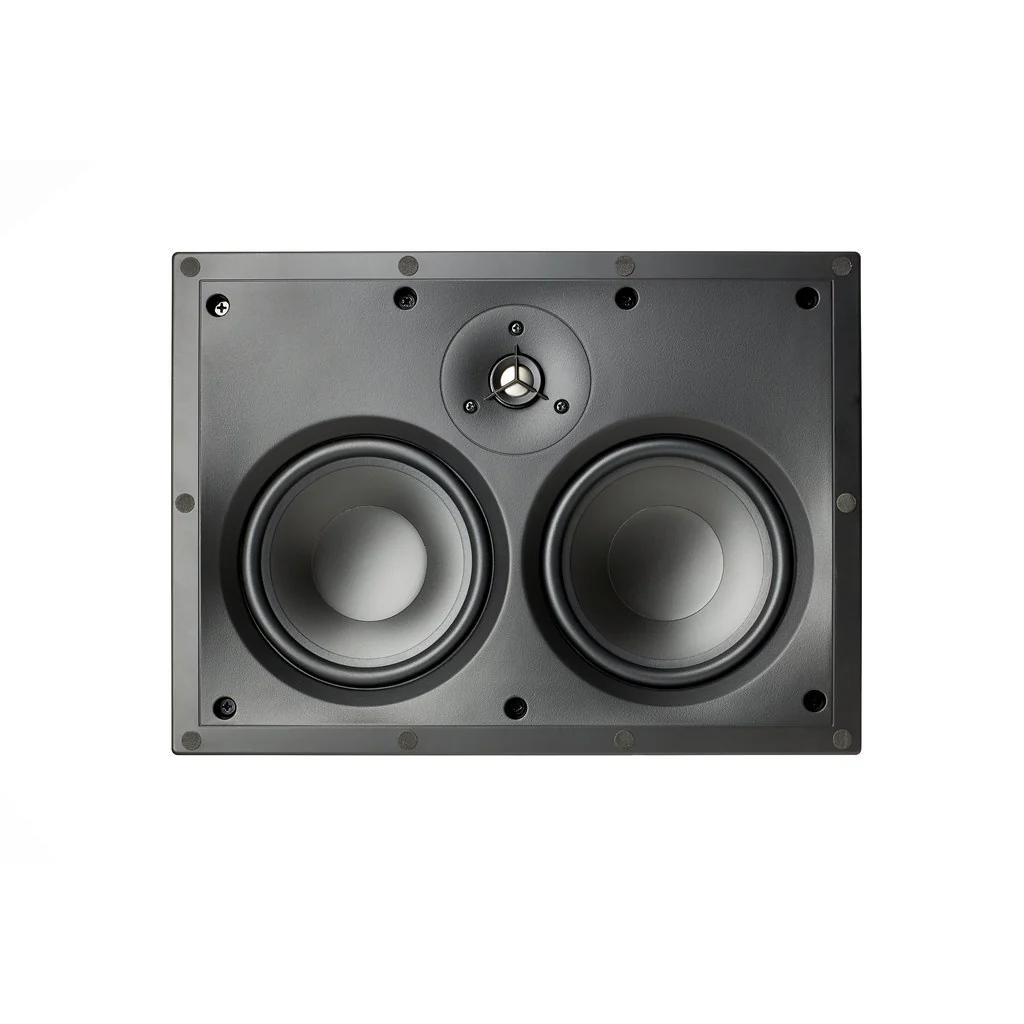

IW5-LCR
One speaker for Left channel, right channel and center channel, the MartinLogan IW5-LCR is perfectly suited for multi-channel, in-wall installations where powerful dynamic impact is not an option.
| Model | IW6 | IW5-LCR |
| Frequency Response | 55–20,000 kHz | 60–20,000 Hz |
| Recommended Amplifier Power | 90W | 10W |
| Sensitivity | 89dB | 89dB |
| Impedance | Compatible with 8 ohms | Compatible with 8 ohms |
| Crossover | 2500Hz | 2500Hz |
| High Frequency Transducer | 0.75” (1.9cm) titanium dome | 0.75” (1.9cm) titanium dome |
| Low Frequency Transducer | 6.5” (16.5cm) mineral-filled poly cone | Two 5.5” (14cm) mineral-filled poly cones |
| Dimensions (overall size) | 11.15” x 8.12” x 3.47” (28.3 x 20.6 x 8.8cm) |
9.3” x 12.6” x 3.5” (23.5 x 32.1 x 8.8cm) |
| Cut-Out Dimensions | 10-1/8” x 7-1/16” (25.7 x 18cm) |
8-1/4” x 11-5/8” (20.9 x 29.5cm) |
| Projection From Wall Surface | 0.31” (0.8cm) | 0.31” (0.8cm) |
| Depth Behind Wall Surface | 3.17” (8.1cm) | 3.17” (8.1cm) |
| Pre-install Bracket (sold separately) | W6 - $20.00 | W5-LCR - $16.00 |
