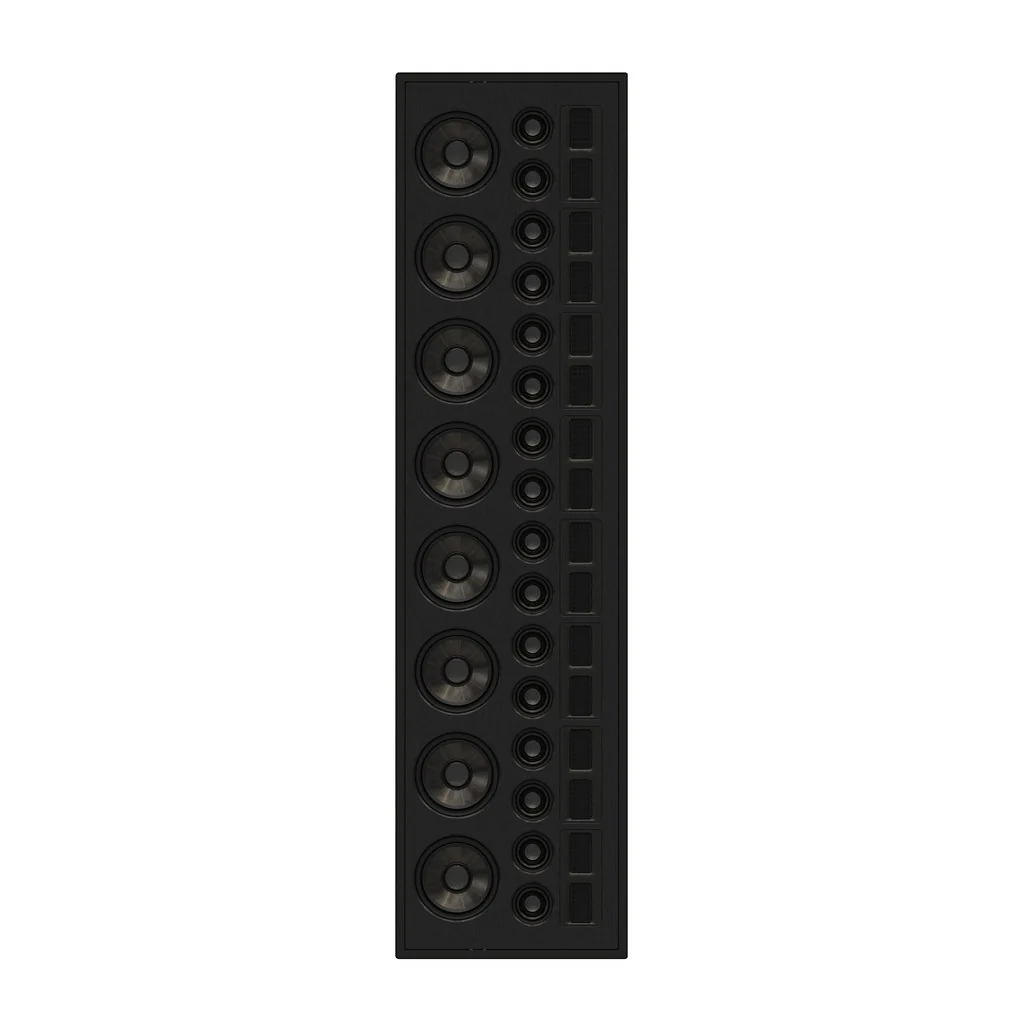

MartinLogan Statement 40XW In-Wall Speaker (Single)
Forty drivers. Seven feet tall with a 52-inch stack of thin-film tweeters. It's the flagship of the Masterpiece CI Series. The Statement 40XW is an enormous, self-contained in-wall loudspeaker system using a super-efficient line-source design to deliver a massive dynamic attack in even the largest listening areas. And it's virtually invisible, taking up no floor space at all. Statement 40XW is an audio experience like no other—only from MartinLogan.
| Frequency Response | 48–25,000 Hz ± 3 dB |
| Tweeter Dispersion (horizontal x vertical) | 80° x 52-inch line source |
| Sensitivity | 95 dB @ 2.83 volts/ meter |
| Impedance |
|
| High Frequency Driver | Sixteen 1.25 x 2.4 inch (3.2 x 6.1 cm) Folded Motion XT Obsidian transducer with 4.5 x 2.75 inch (11.4 x 7 cm) diaphragm. |
| Crossover |
|
|
Mid-Frequency Drivers |
Sixteen 3.5-inch (8.9 cm) black unidirectional carbon fiber multi-section cone with Nomex® backer and cast aluminum basket, sealed back chamber format. Concave dust cap. |
|
Low Frequency Driver |
Eight 6.5-inch (16.5 cm) black unidirectional carbon fiber multi-section cone with Nomex® backer and cast aluminum basket, sealed back chamber format. Concave dust cap. |
| Suitable Amplifier Range | 50–800 watts |
| Required Wall Cavity (width) | Minimum: 14.5 inch (368 mm) Maximum: 16.5 inch (420 mm) |
| Required Wall Cavity (height, unobstructed) | Minimum: 89 inch (2260 mm) |
| Required Wall Cavity (depth) | Minimum: 3.5 inch (89 mm) |
| Enclosure (width x height x depth, excludes padding) | 14.3 x 84.2 x 3.4 inch (361 x 2137 x 86 mm) |
| Grille (height x width) | 11.5 x 59.5 inch (292 x 1511 mm) |
Original: $23,770.95
-65%$23,770.95
$8,319.83MartinLogan Statement 40XW In-Wall Speaker (Single)
